Light duty and Heavy duty tube fittings DIN 24 degree cone seat
1. Distinguish according to pipe diameter
Light pipe diameters are 6,8,10,12,15,18,22,28,35,42; Heavy duty pipe diameters are 6,8,10,12,14,16,20,25,30,38,50. The large pipe diameter can be judged from the pipe diameter, the small pipe diameters 6, 8, 10 and 12 can be judged by the thread size, and the light thread is small.
2. The pressure resistance coefficient is inconsistent. The service pressure of light series is 25MPa and that of heavy series is 40MPa
3.Wall thickness: the heavy thread of the same specification is thicker than the light thread
The following is an example
The left is heavy and the right is light
Adaptation and non adaptation
1.Form sealing surface-Adaptation
In summary, Price determines quality, and adaptation determines sealing. Sincerely hope every customer can solve the pipeline problem in the best way and at the most favorable price.
1. Distinguish according to pipe diameter
Light pipe diameters are 6,8,10,12,15,18,22,28,35,42; Heavy duty pipe diameters are 6,8,10,12,14,16,20,25,30,38,50. The large pipe diameter can be judged from the pipe diameter, the small pipe diameters 6, 8, 10 and 12 can be judged by the thread size, and the light thread is small.
2. The pressure resistance coefficient is inconsistent. The service pressure of light series is 25MPa and that of heavy series is 40MPa
3.Wall thickness: the heavy thread of the same specification is thicker than the light thread
The following is an example

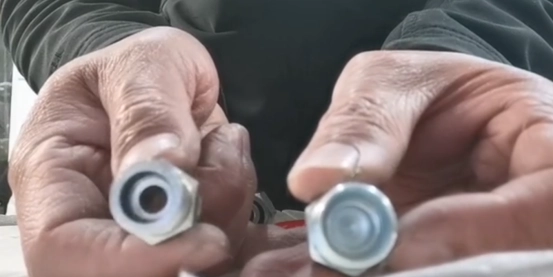

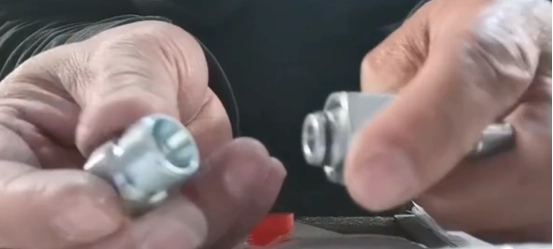

The left is heavy and the right is light
Adaptation and non adaptation

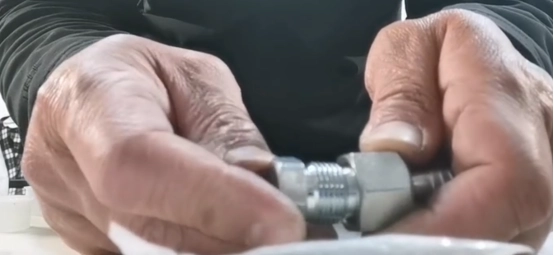

1.Form sealing surface-Adaptation

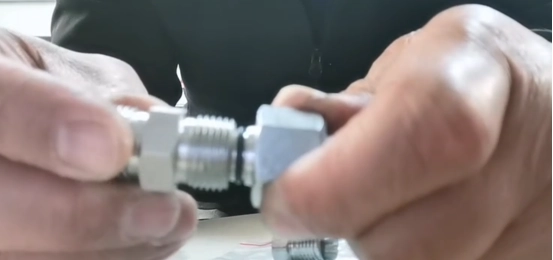

2.Sealing surface cannot be formed-non adaptation
In summary, Price determines quality, and adaptation determines sealing. Sincerely hope every customer can solve the pipeline problem in the best way and at the most favorable price.
