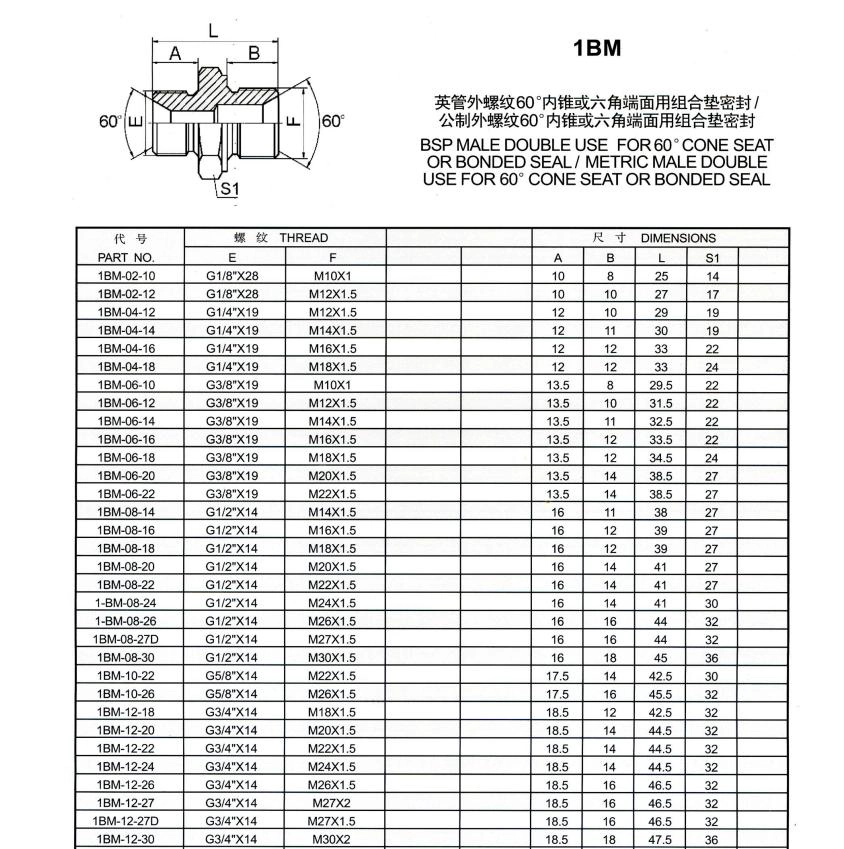

1BM tube fittings
- Material: Stainless Steel ,carbon steel
- Technique: Forged
- Type: Tube adapter
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: YC-LOK
- Connection: Thread
- Shape: Equal
- Head Code: Hexagon
- OD Size: 1/16''-1'', 3mm-25mm
- Structure: Straight
- Working Pressure: up to 6000psi
- Medium: water, oil, gas, acid, base and so on
- Special Treatment: ferrule hardness treatment
- Nut Treatment: silver planted
- Tube Treatment: fully annealed
- Inner Cone: mirror polishing processing
- Working Temperature: -20 to 200 Celsius degree
1.Packaging Details | 1.Wooden box 2.Carton 3.As your request |
2.Delivery Details | Shipped in 30 days after payment |
3.Logo | Any logo is available |
4.MOQ | 100 pcs |
5.Samples | Free |
6.OEM Accepted | Yes |
7.Production Capacity | 10,000 pcs per week |
8.Payment Terms | L/C,T/T,D/P,D/A,Paypal/Western Union/Money Gram |
FAQ
Q1.Can I get free samples?
A: Yes,we can provide you the free sample, but you need tobear their own delivery costs.
Q2. Can I have a sample order for fittings?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3. Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q4. What is your payment term?
A:Normally T/T 50% in advance, balance to be paid before delivery.
Q5: What is your main market?
A:North America,Greenland,South America,Africa,Southeast Asia, Former Soviet Republics ,East Asia,and Europe.
Q6:What kind of trade terms can you do?
A:EX-WORKS,FOB,CFR,CIF,etc.
